XSV 20

Thunder Child.jpg

Safehaven Marine  in 2018-19 developed a new model to add to their extensive range of commercial,  naval  and recreational craft: ‘XSV20’. The design is a high speed offshore patrol / S.A.R  interceptor  and  cruiser with a moulded length of 21.5m and a LOA of 23m (75ft). The hull design is extremely innovative (Patent applied for) and seamlessly fuses a twin stepped asymmetrical catamaran hull form with a wave piercing monohull, to create a hybrid design that delivers the rough weather and high speed dynamic transverse stability of a catamaran, with the steep head sea capabilities of a deep V monohull. During the designs initial development 6mth R&D programme was undertaken, during which Safehaven built 12 scale model variants which were extensively tank tested to optimise the designs performance characteristics and hydrodynamics.


The first of class 'Thunder Child II' was launched early 2019 and underwent extensive sea trials during the last two months during which she proved to have excellent seakeeping and performance during a range of trials in varying sea states right up to Force 10 and in 5m seas off the Atlantic coast of Ireland, she proved to be very sea kindly and soft riding with excellent stability.  Safehaven plan upon attempting a 4,500km UIM approved Transatlantic record attempt from Canada to Ireland via Iceland and Greenland in Thunder Child II in July 2010, an extremely challenging voyage where she will face hazards of sea ice and the inevitable North Atlantic storms, ‘Thunder Child II’ is fitted with quad Caterpillar C8.7 650hp engines coupled to quad France Helices SD3L surface drives in a staggered arrangement, the quad engine decision providing the desirable redundancy for such an epic voyage, as should one engine fail she will still be able to maintain planning speed. She is fitted with an 8,000 litre fuel capacity allowing an 800nm+ range at her cruise speed of 40kts, and is capable of altering her LCG for prevailing sea conditions via a fuel transfer arrangement to a 2,000L f/wd ballast tank. A second XSV20 fitted with Waterjets and Caterpillar C18 1,150hp engines achieving 45kts was delivered in 2019.


Jacks XSV 20 1.jpg

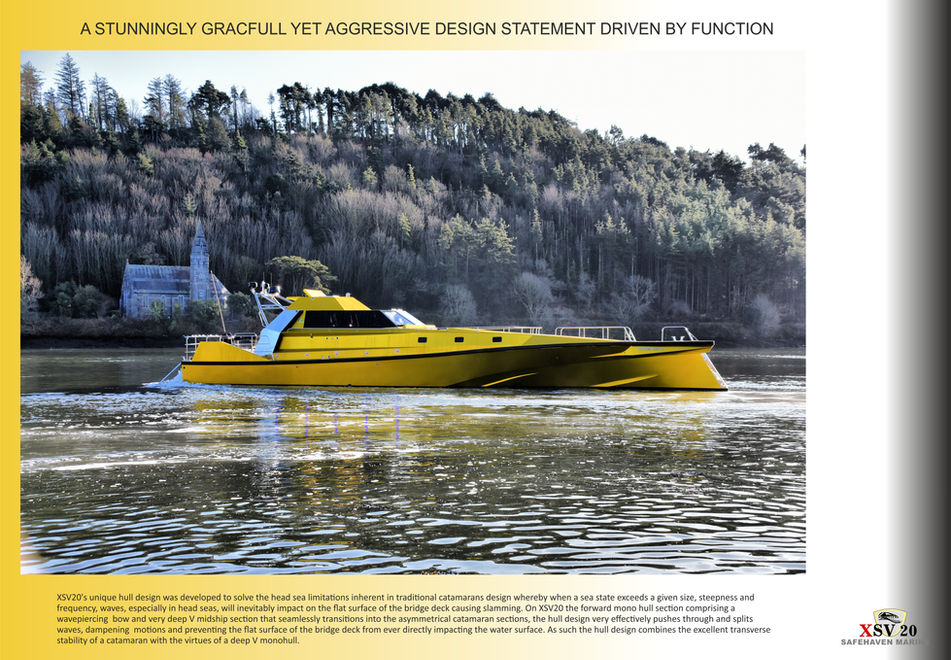

XSV20’s unique hull design was developed to solve the head sea limitations inherent in traditional catamarans design whereby when a sea state exceeds a given size, steepness and frequency, waves, especially in head seas, will inevitably impact on the flat surface of the bridge deck causing slamming. On XSV20 the forward mono hull section comprising a wavepiercing  bow and very deep V midship section that seamlessly transitions into the catamaran sections, very effectively pushes through and splits waves, dampening  motions and preventing the flat surface of the bridge deck from ever directly impacting the water surface. The hull of course will be design fully wave pierce, the level to which is speed dependent, but in general wave height needs to exceed 2m before this begins to occasionally occur and to this end the superstructure is especially strengthened and incorporates 25mm ballistic glass for the front windows, with above deck fit out, arrangement’s and air intakes especially designed for this.


Integral to the design is the incorporation of a hydrofoil system, designed by Hyuscraft installed between the asymmetrical catamaran hull, (the asymmetrical form particularly advantageous in this respect) and as such lifts the hull 400mm at higher speeds allowing the forward monohull section to run mostly dry and clear of the water with very little wetted area, the monohull sections only coming into significant effect in larger sized wave encounter effect allowing the hull to cut through waves.The hydrofoil also significantly improves seakeeping as it very effectively damps pitching as well as overall hull motions in waves. The hydrofoil comes into effect for speeds of 30kts and over and provides excellent efficiency at these higher cruising speeds, with range  and fuel economy actually increasing the faster you go., the complete opposite of typical planning hulls.

The design also allows for wider load variations as the monohull section supports a significant percentage of the vessels overall displacement, and by virtue of its steep deadrise, buoyancy rises exponentially supporting increases in displacement, thereby preventing excessive hull sinkage, which on a pure catamaran hull design results in a significantly reduced bridge deck clearance when heavily loaded. As such seakeeping in large waves at displacement speed when inevitably forced to slow down is excellent with negative impact on seakeeping, slamming never occurring on the bridge deck.

XSV20 can be powered by either surface drives or waterjets, the design has a maximum speed well over 50kts, a 40kts+ cruise speed and a range of 500nm.


Thunder Child II has been fitted out to a very high practical and purposeful standard and also to provide a comfortable and stylish environment, with her main remit being fast offshore passage making, as such she has a crew capacity for 5, all on ‘military spec’ shock mitigation seating supplied by SHOXS, with four additional reclining suspension seating aft in her main cabin for passengers. A basic galley is also provided aft in the spacious main cabin fitted with sink, 240v hob, microwave and fridge. The cabin is beautifully fully lined in white and black piped and cross stitched vinyl with wood laminates and teak & holy cabin sole.

The helm position features a ‘glass helm’. The helmsman and navigator have a focused, ergonomically designed position allowing excellent control of the craft at high speeds navigation and all round visibility.

Her lower forward cabin offers a comfortable fully lined living area with full sleeping and live aboard facilities for her crew featuring 5 berths in four cabins including a masters cabin. Two heads compartments, one with a shower are provided here.  Her large forepeak incorporating anchoring arrangements and stowage is accessed via a watertight b/head door.

The design has a high level of survivability with multiple watertight compartments complying with Comercial standards of safety and engineering to the same levels as Safehavens SAR & ‘All weather’ pilot craft. She has numerous additional safety and system redundancy features incorporated to allow very long range remote region voyages.  XSV20  has EU RCD Category A certification. A trim control system is integrated allowing fine control and adjustability of her running trim. A 4kw AC generator provides 240 on-board and a Dometic 27,000btu air-conditioning unit provides climate control.  Comercial standard bilge and ER fire suppression systems are fitted.

As expected a full suite of electronic navigation equipment is integrated with four Simrad 19” monitors in a ‘glass helm’ design for Radar, GPS Chart plotting, VHF, Forward looking sonar,  and a FLIR thermal night vision camera & autopilot is fitted. A dedicated engineer’s station allows monitoring of the engines and multiple CCTV coverage of the craft. Satellite Inmarsat communication is provided by Sailor ensuring the crew can be in contact in remote geographical regions.

Safehaven’s XSV20 has a L.O.A. of 23m, a beam of 5.2m and a lightship displacement of 24,000kg, featuring a fully cored FRP hull and superstructure in vinlylester, E glass and incorporating Kevlar and Carbon Fibre as reinforcement within the structure which has been over engineered to provide the necessary strength for heavy weather operation and designed to a 6g operational envelope. XSV20 is without doubt a very striking craft where form, whilst clearly following function, has also resulted in a sleek yet aggressive design that is quite unique, and certainly turns heads wherever she goes.


Thunder Child II carries a 2.7m RIB fitted with a 6hp Suzuki engine as a tender carried on a removable transom  cradle launched by a manual davit / winch which can also be removed when not required.


XSV 20 Principle dimensions / characteristics


L.O.A.                                                   23m / 75ft


Hull length                                         21.4m / 67ft


Beam overall                                      5.4m / 17ft 7"


Draft                                                    .85m / 2ft 9"


Displacement lightship                    24,000kg


Fully loaded                                       29,000kg


Fuel capacity                                      4,000L


Range                                                  400nm+


Crew capacity                                     12

Seating                                                SHOXS  Shock mitigation seats


Engines                                              2 x 1,500hp MAN

Gearboxes                                          ZF

Surface Drive                                     France Helices SDS5L

Waterjets                                            Marine Jet Power / Hamilton

Trim control/stabilization                Humphree

Air-Conditioning                                 Dometic 2X 2,7000BTU


Speed Maximum                                50kts+


Cruise speed                                      40+kts

Survivability                                       8x watertight compartments

Construction                                       FRP Composite
